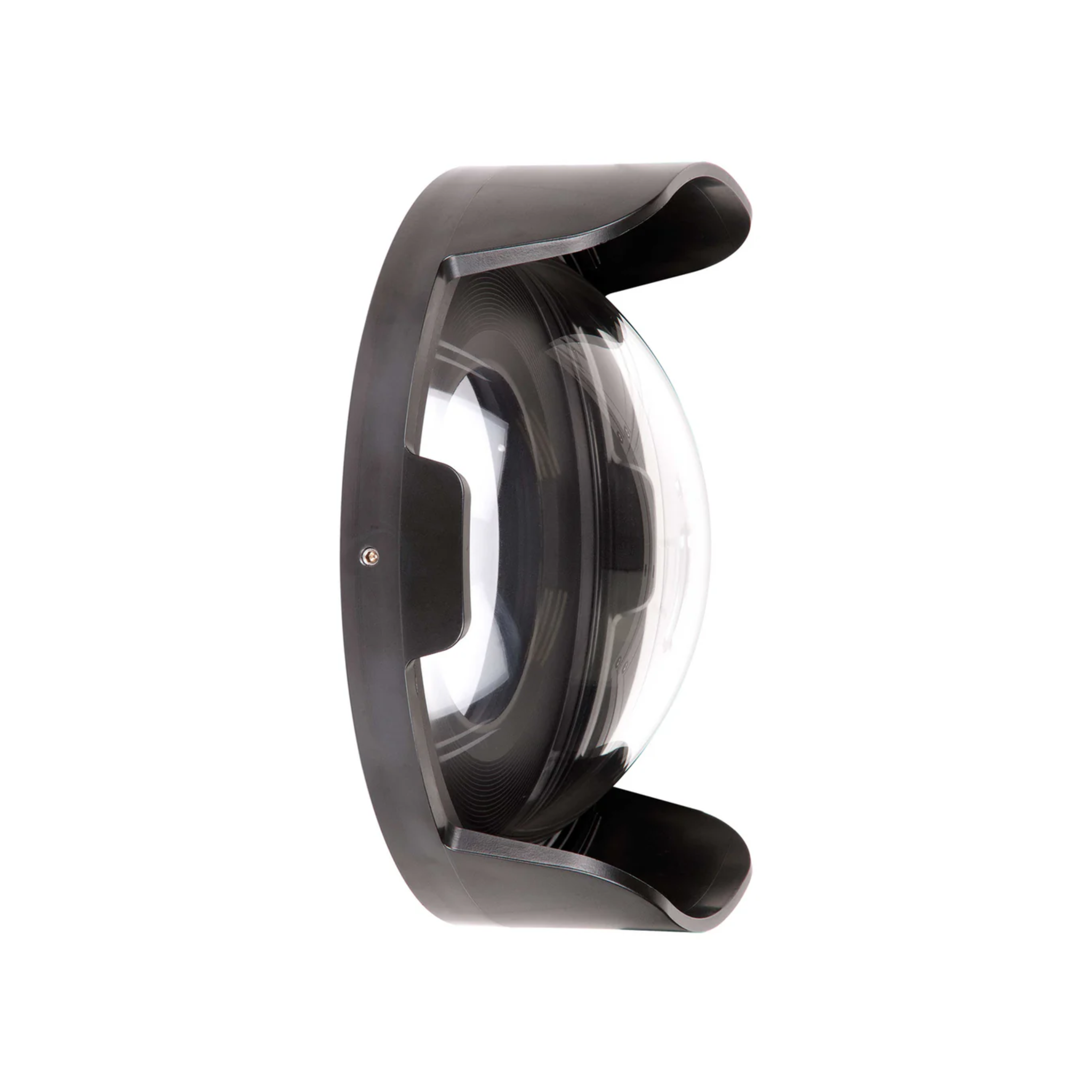

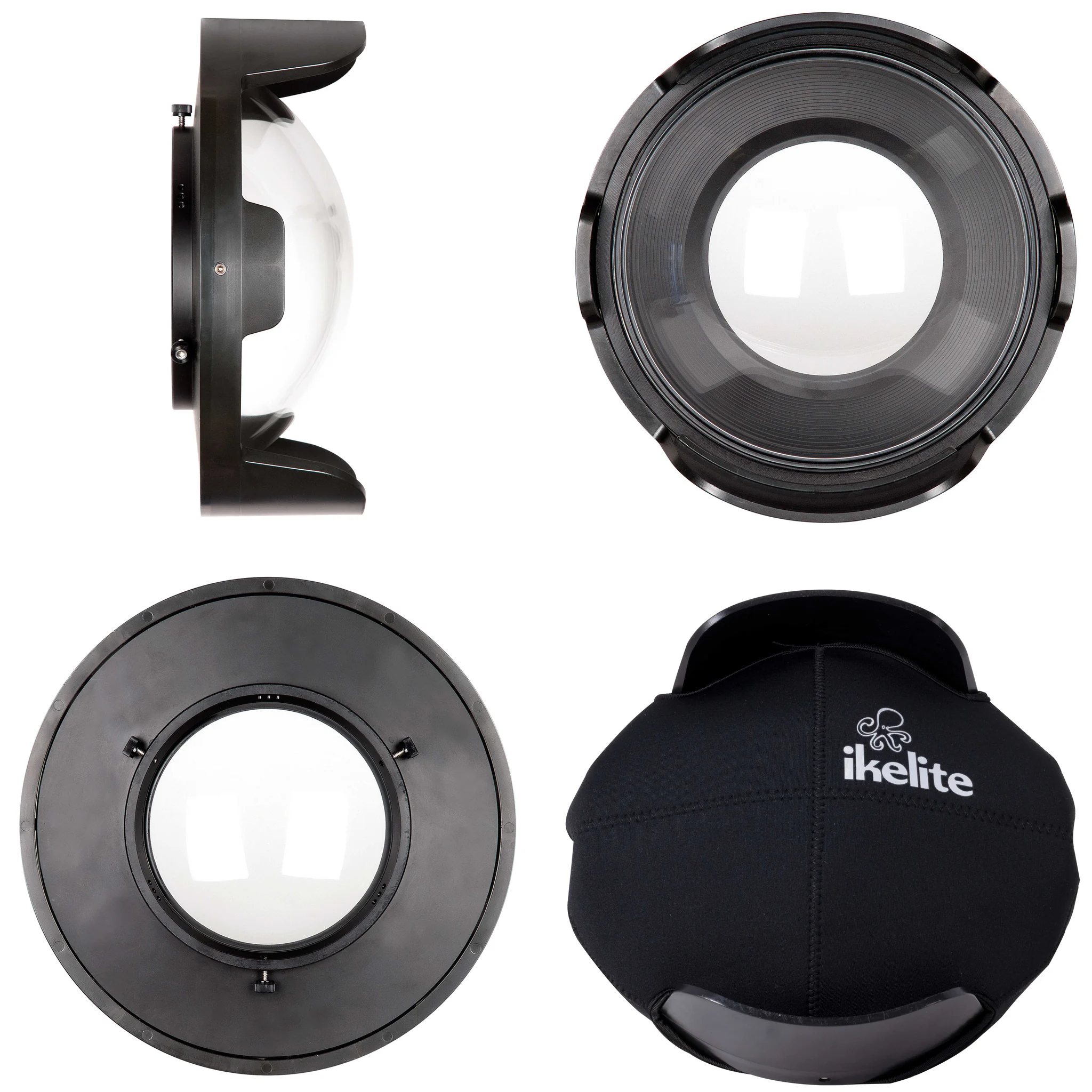

Ikelite DL 8" Dome Port for Wide-Angle & Zoom Lenses (#75340)

Capture expansive reef scenes, dramatic wrecks, split-level images, and large marine life with the Ikelite DL 8" Dome Port (#75340). Designed for Ikelite's DL (Dry Lock) port system, this premium dome port restores your lens's wide field of view underwater while minimizing distortion for sharp, vibrant images.

The large 8-inch optical acrylic dome provides excellent corner sharpness and smoother over-under (half-above, half-below water) photography compared to smaller dome ports. Compatible with a wide variety of wide-angle and zoom lenses, the DL 8" Dome Port is an excellent choice for serious underwater photographers using Ikelite DL mirrorless and DSLR housings.

---

Why You'll Love It

• Designed for Ikelite DL (Dry Lock) housing systems
• Large 8-inch optical acrylic dome
• Restores your lens's wide-angle field of view underwater
• Excellent for reefscapes, wrecks, divers, and large marine life
• Great choice for over-under (split) photography
• Compatible with many Canon, Nikon, Sony, Sigma, Tokina, and Rokinon lenses
• Can be paired with DL extension rings for additional lens compatibility
• Depth rated to 200 ft (60 m)

---

Key Features

Restore Your Wide-Angle View

Water naturally magnifies subjects and narrows your camera's field of view when shooting through a flat port. The DL 8" Dome Port corrects this optical effect, allowing your wide-angle lens to capture the expansive scenes it was designed for.

Outstanding Corner Sharpness

The large 8-inch dome creates a more favorable virtual image for your lens to focus on, producing improved edge-to-edge sharpness compared to smaller dome ports. This makes it an excellent option for high-resolution mirrorless and DSLR cameras.

Perfect for Split Shots

Thanks to its generous 8-inch diameter, the dome rises above the water's surface more easily than smaller ports, making over-under images significantly easier to capture with a cleaner waterline.

Built for the DL System

The port mounts directly to Ikelite DL housings and can be combined with compatible DL extension rings to support a wide variety of lenses. It is not compatible with Ikelite DLM or legacy FL port systems.

Durable Construction

The dome is manufactured from optical-grade acrylic, providing excellent image quality while remaining lighter and easier to travel with than glass domes. The body is constructed from rugged acetyl plastic for long-lasting performance in demanding underwater environments. Integrated shades help reduce flare and protect the dome surface.

---

Compatible Lens Examples

The DL 8" Dome Port supports a wide variety of lenses when used with the appropriate extension rings, including many popular options such as:

• Canon EF 8–15mm f/4L Fisheye
• Canon EF-S 10–18mm IS STM
• Canon EF 16–35mm f/2.8L
• Canon EF 24–70mm f/2.8L II
• Nikon AF-S 8–15mm Fisheye
• Nikon 10–24mm
• Sigma 8–16mm
• Tokina 10–17mm Fisheye
• Tokina 11–16mm f/2.8
• Rokinon 8mm Fisheye

Always consult the current Ikelite DL Port Chart to determine the correct extension ring and lens configuration for your specific camera system.

---

Specifications

• Product Number: 75340
• Housing Compatibility: Ikelite DL (Dry Lock) Port System
• Depth Rating: 200 ft (60 m)
• Dome Material: Optical-grade acrylic
• Body Material: Acetyl plastic
• Port Diameter: 9.25 in (235 mm)
• Length: 3.75 in (95 mm)
• Mount Type: DL (Dry Lock)
• Compatible With: DL extension rings for additional lens configurations

---

What's Included

• Ikelite DL 8" Dome Port
• Removable Dome Shade
• Neoprene Front Cover
• Neoprene Rear Cover
• Mounting Thumb Screws
• One-Year Manufacturer Warranty

---

Perfect For

• Reef photography
• Wreck photography
• Big animal encounters
• Diver portraits
• Fisheye photography
• Ultra-wide landscapes
• Over-under (split) photography

The Ikelite DL 8" Dome Port (#75340) is an outstanding choice for photographers who want the highest image quality from their wide-angle lenses. Its large optical acrylic dome delivers excellent corner sharpness, natural wide-angle coverage, and beautiful split-level images, making it an essential component of any professional Ikelite DL underwater camera system.
