Description

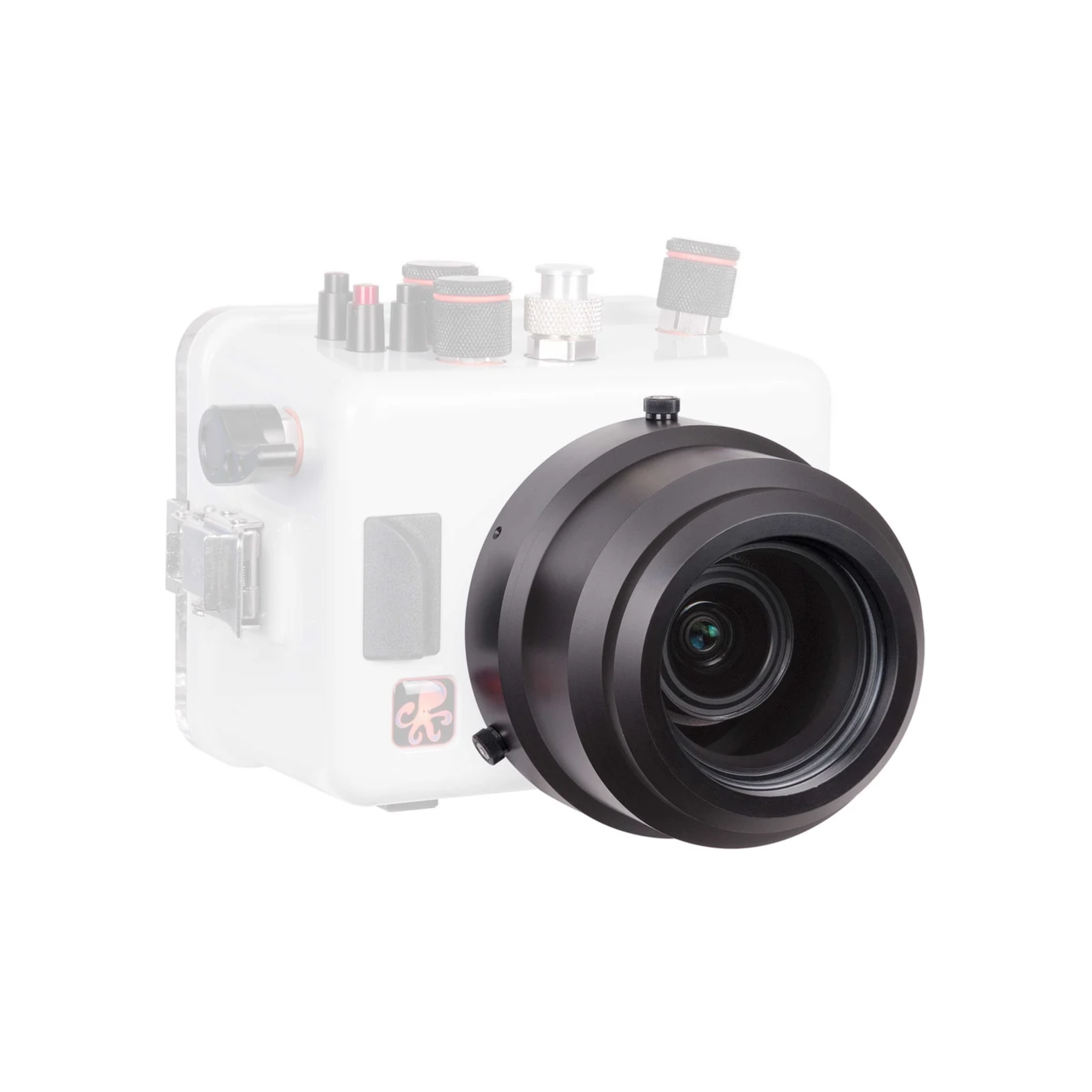

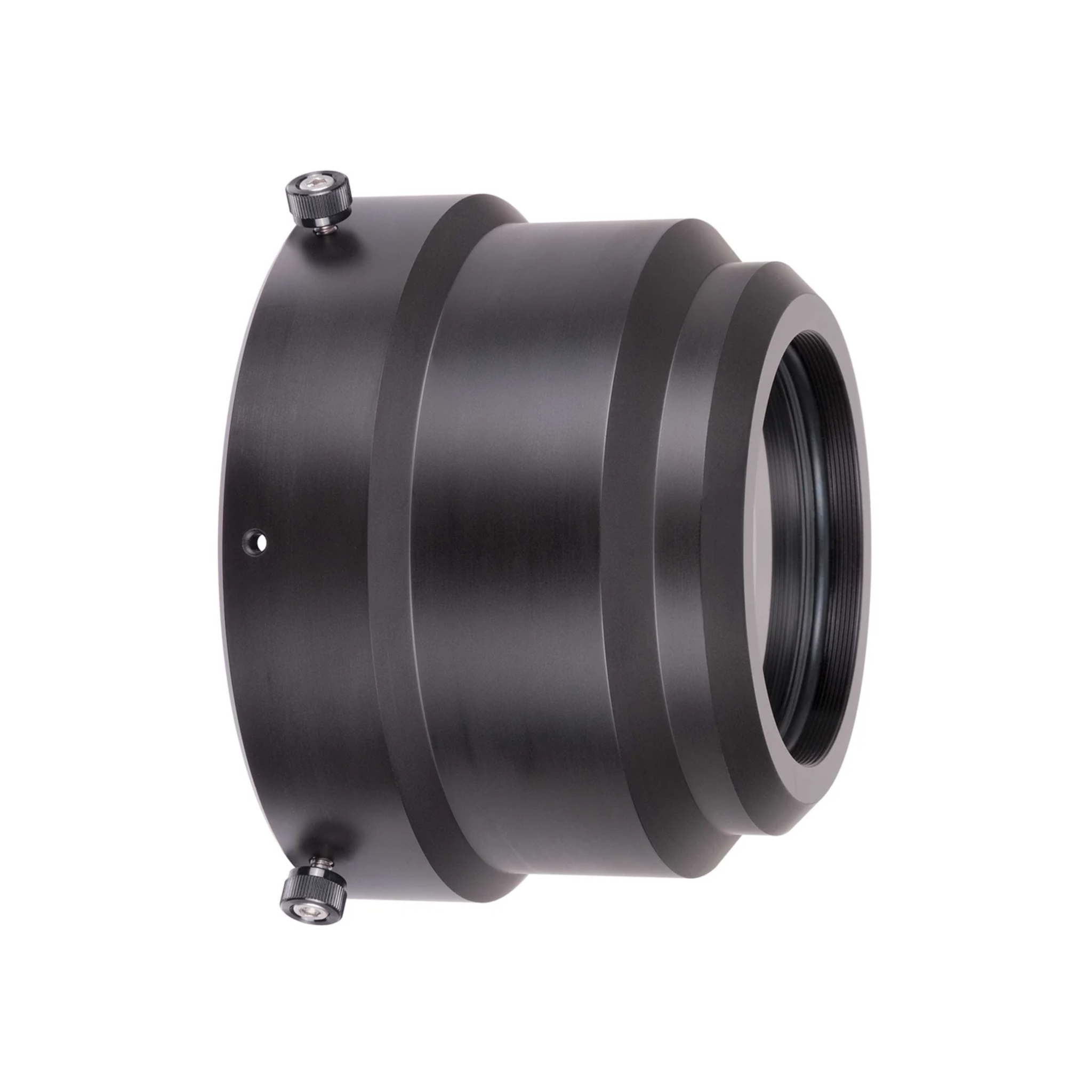

Ikelite DLM Flat Port 3.2" (#5516.51)
The Ikelite DLM Flat Port 3.2" is designed for underwater photographers using longer macro lenses with Ikelite's DLM (Dry Lock Micro) housing system. Constructed from durable anodized aluminum with a precision optical glass front, this port delivers excellent image quality while providing the extra length needed for select macro lens and extension combinations.
A built-in 67mm threaded front makes it easy to attach compatible wet macro lenses and close-up diopters, allowing you to increase magnification without changing your housing setup. Whether you're photographing tiny nudibranchs, shrimp, or intricate coral details, the DLM Flat Port 3.2" provides a reliable foundation for professional macro imaging.
Why You'll Love It
- Designed for Ikelite DLM housing systems
- Ideal for longer macro lenses
- Precision optical glass flat port
- Durable anodized aluminum construction
- Built-in 67mm front thread for wet lenses and diopters
- Compatible with Ikelite DLM extension rings for multiple lens configurations
- Depth rated to 200 ft (60 m)
Key Features
Optimized for Macro Photography
The 3.2-inch flat port is engineered for longer macro lenses that require additional clearance inside the housing. When paired with the appropriate DLM extension ring, it provides the correct optical spacing for outstanding close-focus performance and sharp underwater images.
Built for the DLM System
This port is compatible with Ikelite's DLM (Dry Lock Micro) port system used on many mirrorless and compact DSLR housings. It is not compatible with Ikelite DL or FL port systems.
Expand with Wet Macro Lenses
A standard 67mm threaded front allows you to attach wet close-up lenses and diopters directly to the port, making it easy to increase magnification during a dive without opening the housing.
Premium Construction
The housing is machined from corrosion-resistant anodized aluminum with an optical glass front element for maximum durability and image quality, even after years of diving in saltwater environments.
Common Compatible Lens Examples
Depending on your camera system and the required extension ring, the DLM Flat Port 3.2" is commonly used with lenses such as:
- Canon RF 100mm f/2.8L Macro IS USM
- Sony FE 90mm f/2.8 Macro G OSS
- Sony FE 100mm f/2.8 STF Macro GM
- Other longer macro lenses listed in Ikelite's DLM Port Chart
Always consult the Ikelite Port Chart to determine the correct extension ring and configuration for your specific camera and lens combination.
Specifications
- Product Number: 5516.51
- Housing Compatibility: Ikelite DLM Port System
- Depth Rating: 200 ft (60 m)
- Front Thread: 67mm
- Construction: Anodized aluminum body with optical glass front
- Dimensions: 4.37 × 3.0 in (111 × 76 mm)
- Weight: 14.7 oz (417 g)
What's Included
- Ikelite DLM Flat Port 3.2"
- Installed thumb screws
- Protective vinyl port cover
- Silicone lubricant
- One-year manufacturer warranty
Perfect For
- Super macro photography
- Fish portraits with macro lenses
- Underwater photographers using longer focal length macro lenses
- Divers who want to use 67mm wet macro diopters
The Ikelite DLM Flat Port 3.2" (#5516.51) is an excellent choice for photographers building a dedicated macro system with an Ikelite DLM housing. Its durable construction, optical glass front, and integrated 67mm thread make it a versatile solution for capturing stunning close-up underwater images.
