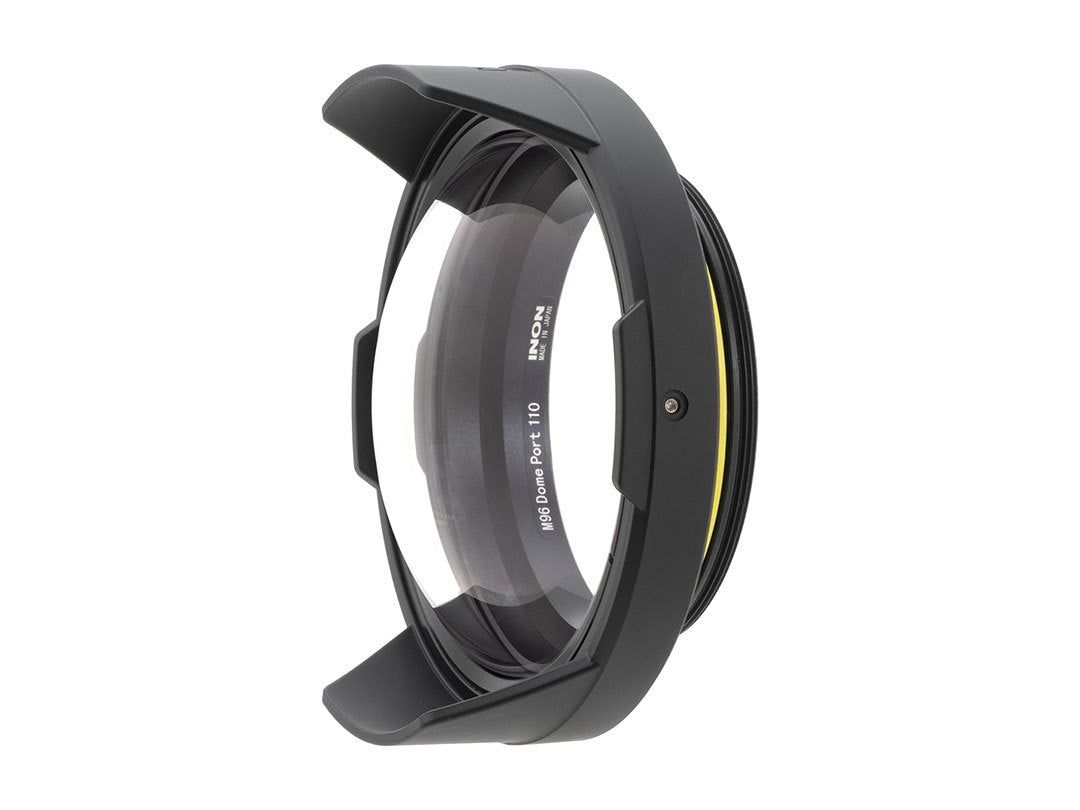

M96 Dome Port 110

Product Description

The INON M96 Dome Port 110 is a compact underwater dome port featuring a 110 mm optical glass dome and M96 threaded mount. Designed for wide-angle and fisheye photography, it can be mounted directly to compatible housings or combined with an M96-threaded extension ring to accommodate additional lens configurations.

The dome uses multi-coated optical glass to reduce flare and ghosting for clearer underwater images. Its included protector serves two purposes: helping protect the dome glass from accidental damage and blocking unwanted light that can contribute to flare and ghosting. Despite its compact dimensions, the port is depth rated to 75 m (246 ft) and constructed from rigid black anodized corrosion-resistant aluminum alloy.

Key Benefits

• 110 mm Optical Glass Dome
  Compact 110 mm diameter dome provides high-quality optics for compatible wide-angle and fisheye lenses.
• Multi-Coated Optical Surface
  The inner surface of the optical glass is multi-coated to help reduce flare and ghosting for clearer underwater images.
• M96 Threaded Mount
  Uses an M96 screw connection for direct installation on compatible housings or use with compatible M96 extension rings.
• Compact Dome Design
  Offers the imaging performance of INON's previous compact dome designs in a smaller, easier-to-handle package.
• Included Protector
  The polycarbonate protector helps guard the dome against accidental damage while also shading unnecessary light to further reduce flare and ghosting.
• 75 m / 246 ft Depth Rating
  Built for recreational and advanced underwater imaging at depths up to 75 meters (246 feet).

Who It's For

• Underwater photographers
• Wide-angle and fisheye photographers
• Underwater videographers
• Owners of compatible INON housings
• Photographers building M96 port configurations

What's Included

• INON M96 Dome Port 110
• PC Protector

Key Specifications

• Product Type: Compact Dome Port
• Mount: M96 threaded mount
• Dome Diameter: 110 mm
• Dimensions: Ø132 × 56 mm (5.1 × 2.2 in.)
• Weight in Air: 339 g (11.9 oz.), including protector
• Depth Rating: 75 m (246 ft)
• Body Material: Corrosion-resistant aluminum alloy with rigid black alumite finish
• Dome Material: Optical glass, multi-coated on the inner surface
• Protector Material: Polycarbonate (PC)

Compatible Lenses

• Canon EF8-15mm F4L Fisheye USM — requires EXT. Ring 18
• Tokina AT-X 107 DX Fisheye (without hood) — requires EXT. Ring S
• Canon EF16-35mm F2.8L II USM — requires EXT. Ring M and EXT. Ring 36
• Canon EF-S10-18mm F4.5-5.6 IS STM — requires EXT. Ring 36
• Panasonic LUMIX G FISHEYE 8mm/F3.5

Additional lens compatibility can depend on the specific housing and required extension-ring configuration, so the applicable housing compatibility chart should be checked when building a complete system.

FAQ

What is the M96 Dome Port 110 designed for?
It is a compact dome port designed for compatible wide-angle and fisheye lenses used with INON underwater housing systems.

Can it attach directly to an INON housing?
Yes, on compatible housings. It can also be used with M96-threaded extension rings, such as the MRS EXT. Ring 50, depending on the camera and lens combination.

Does the dome have an optical coating?
Yes. The optical glass is multi-coated on its inner surface to help reduce flare and ghosting.

Is the protector included?
Yes. The listed 339 g (11.9 oz.) weight includes the protector. The protector helps guard the dome and blocks unwanted light.

What is the maximum depth rating?
The M96 Dome Port 110 is rated to 75 m (246 ft).

Is this a genuine INON product?
Yes. The M96 Dome Port 110 is a genuine INON underwater optical port.
